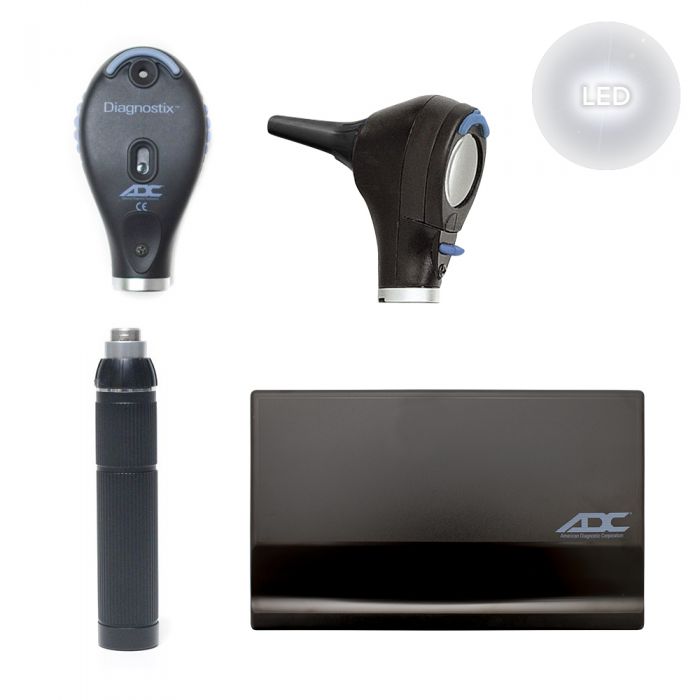

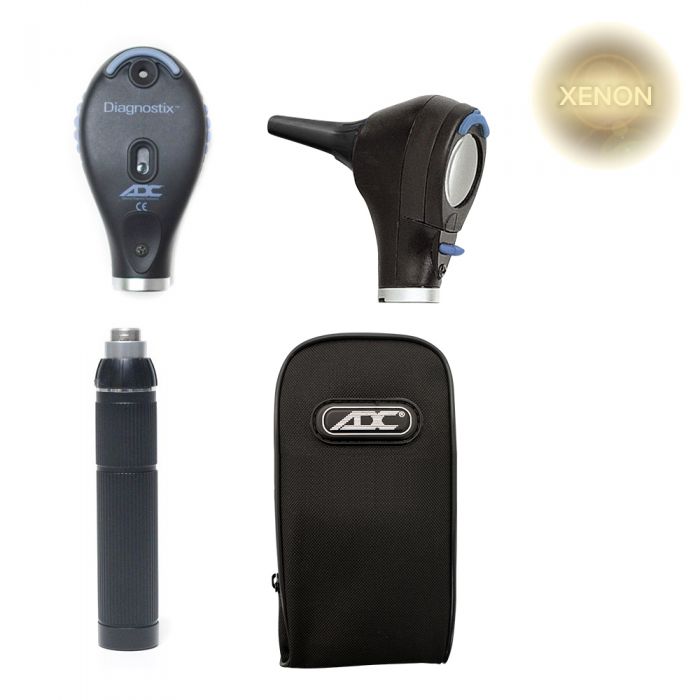

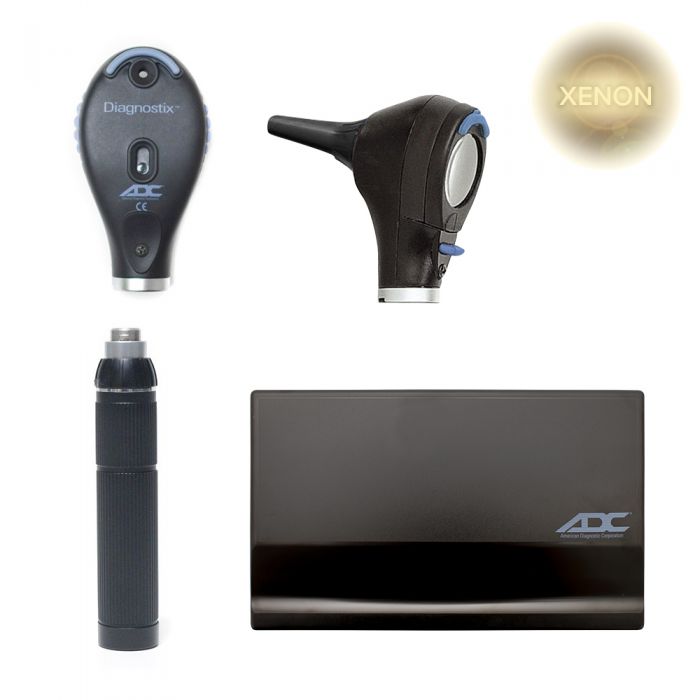

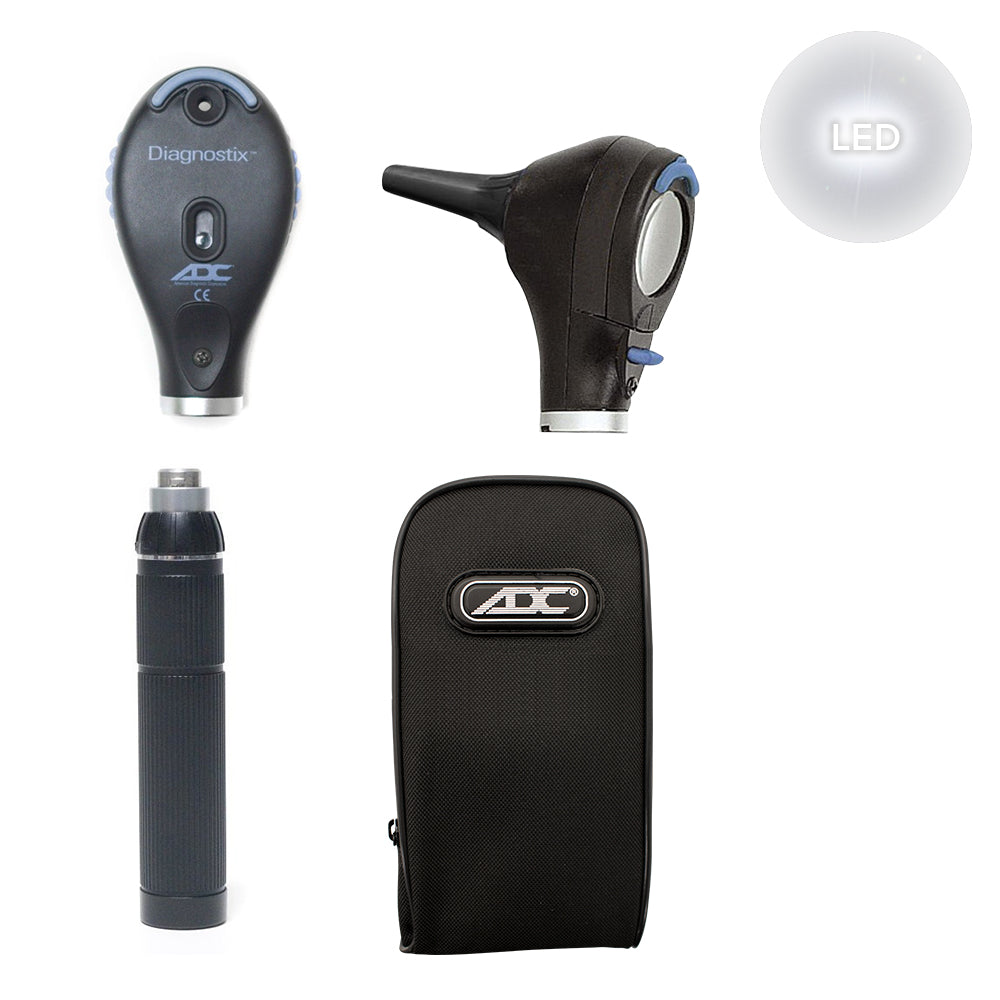

ADC Diagnostix 3.5V Rechargeable Diagnostic Set (Otoscope/Coax Ophthalmoscope)

This ADC Diagnostix 3.5V Rechargeable Diagnostic Set includes a Diagnostix 3.5V Standard Otoscope, 3.5V Coax Ophthalmoscope and 3.5V Rechargeable Instrument Handle. Available in LED or Xenon bulb options (both instrument heads) and either hard or soft case.

ADC 3.5V Diagnostic EENT instruments are among the most critical toolsets in a clinician's repertoire when performing a comprehensive physical exam. ADC Diagnostix-brand EENT instrument sets help practitioners perform fast, accurate, and efficient exams thanks to innovative optics, advanced lighting technologies, and long-lasting power sources.

• Fiber-optic light transmission for an unobstructed view
• Optical glass reduces reflection and provides 3X magnification
• Bidirectional swivel lens allows instrumentation
• Insufflator port for pneumatic otoscopy
• Compatible with Welch Allyn specula
• Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
• Anti-theft locking feature is standard
• Choose from halogen/xenon or advanced AdLED illumination
• Two-year warranty on instrument, lifetime warranty on AdLED lamp

Diagnostix 3.5V Coax Ophthalmoscope Instrument Head Features:

The ADC Proscope 3.5V Coax Ophthalmoscope Instrument Head for examination of the eye, manufactured by one of the world's leading manufacturers.

• High performance aspherical condenser lens reduces corneal reflection
• Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrands principal)
• Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions
• Synthetic rubber brow rest facilitates use with practitioner eyeglasses
• Dust proof
• Magnified/illuminated aperture viewing window
• Universal bayonet mount for compatibility with other brands of 3.5v power supply handles
• Anti-theft locking feature is standard
• Choose from Halogen/Xenon or advanced AdLED illumination
• 2 year warranty on instrument. Lifetime on AdLED lamp
• 29 viewing lenses from -35 to plus 40 (Plus 1-10, 12, 15, 20, 40 Minus 1-10, 15, 20, 25, 30, 35)
• 24 aperture/filter combinations for improved versatility

6 apertures include:

• Slit used to help determine levels of tumors and lesions
• Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions
• Large - standard aperture for a dilated pupil and general examination of the eye
• Small - provides excellent view of fundus through an undilated pupil
• Micro spot- allows quick entry into small, undilated pupils
• Half moon provides a combination of depth perception and field of view

3 filters (plus neutral) include:

• Red free- excludes red rays from examination field for easy identification of veins, arteries and nerve fibers
• Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea
• Polarizing virtually eliminates corneal reflection

Diagnostix 3.5V Rechargeable Instrument Handle Features:

The ADC Diagnostix 3.5V Rechargeable Instrument Handle features a 2600 maH rechargeable Li-ion battery and is manufactured from high-quality, chrome plated solid brass with a ribbed surface for a sure grip.

• C sized handle with 2600 maH rechargeable Li-ion battery
• CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip
• Adtronic electronic reostatic light intensity control provides infinite continuous control and auto off feature after 2 minutes
• Bayonet instrument mount is compatible with all major brands of 3.5v instrument heads
• Li-ion battery provide 3 hours continuous use with Xenon, 50 hours use with LED when charged for 24 hours. Up to 1200 charge cycles
• Requires our desk charger base (part 5500)
• 2 year warranty
